UNOLINER CRS3000-DO
UNOLINER CRS3000-DO
- Code: CRS3000-DO

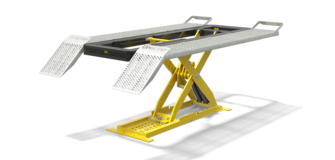

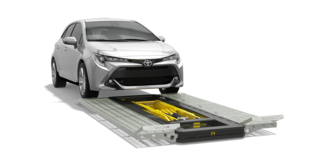

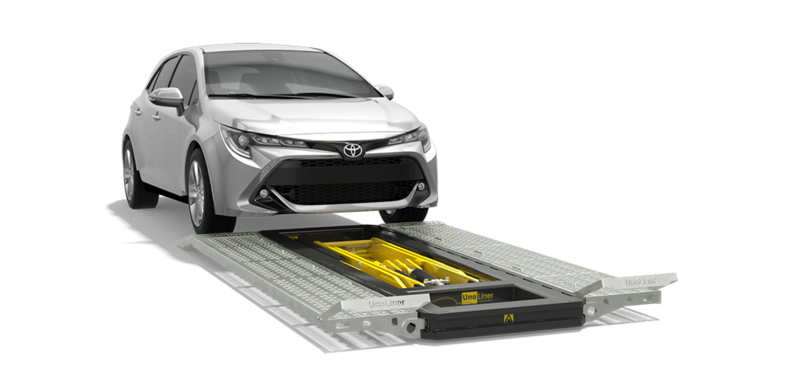

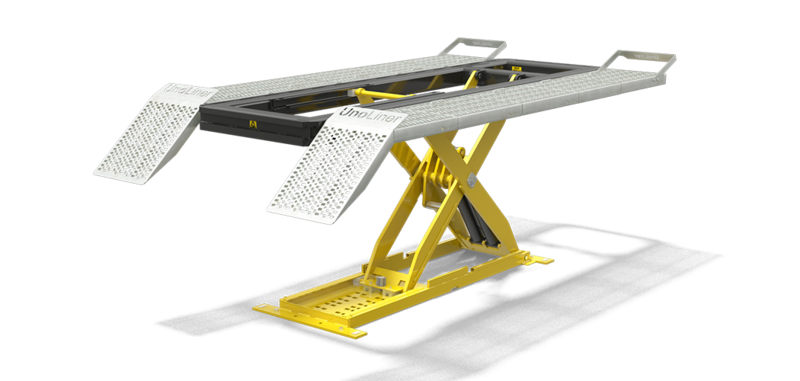

The UNOLINER CRS3000-DO Quick Bench comes equipped with an angled drive-on ramp section with a length of 60 cm. Its total length, including drive-on ramps, is 3.8 meters. Its total width, including the R18 Drive-On Ramp, is less than 2 meters.
This means this Quick Bench takes up very little space despite its pulling power and great usability. Because of its efficient design, it fits in any workshop.
The CRS3000-DO set includes an F30 bench frame with an L30 Scissor Lift, 1x R18 Drive-On Ramp Set, 4x C10 Quick Lock Chassis Clamp, 4x B10 Bench Adapters, 4x H20 Wheels Stands, 1x P10 Draw Aligner Pulling Tower, and 1x F1030 Bench Height Set.
Features
- No compromise, fully-fledged straightening bench
- 3 ton lifting capacity
- Multiple-angle 10-ton pulling ability
- Interchangeable UnoLiner accessories
- Low base height of 14.5 cm
- Ideal for smaller workspaces

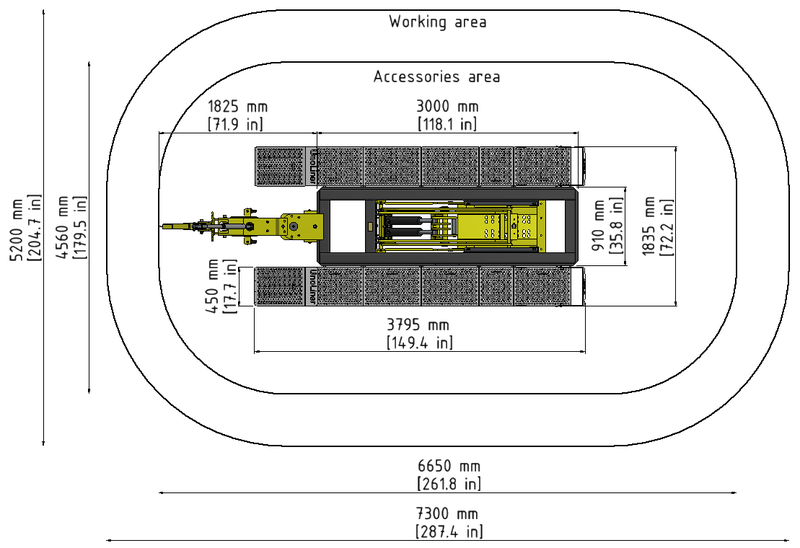

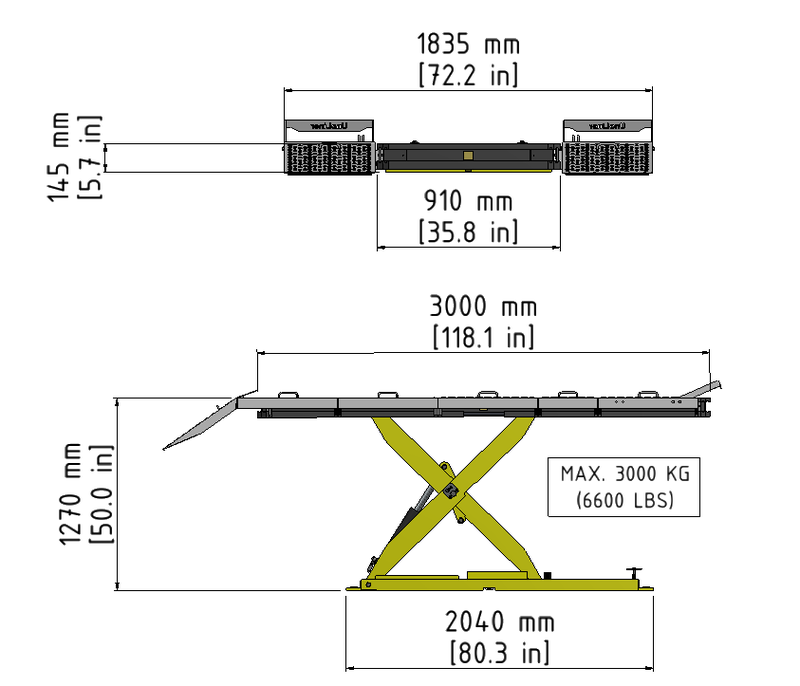

Technical data
- Bench frame length: 3000 mm
- Bench frame width: 910 mm
- Min. bench height: 145 mm
- Max. bench height: 1270 mm
- Max. load weight: 3000 kg
- Length incl. ramps: 3795 mm
- Width incl. ramps: 1835 mm
