UNOLINER CRS4600T IN GROUND

UNOLINER CRS4600T IN GROUND

  • Code: CRS4600T IN GROUND

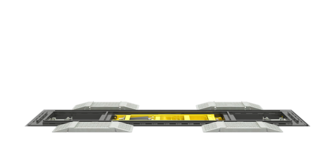

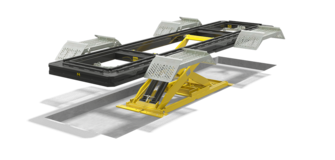

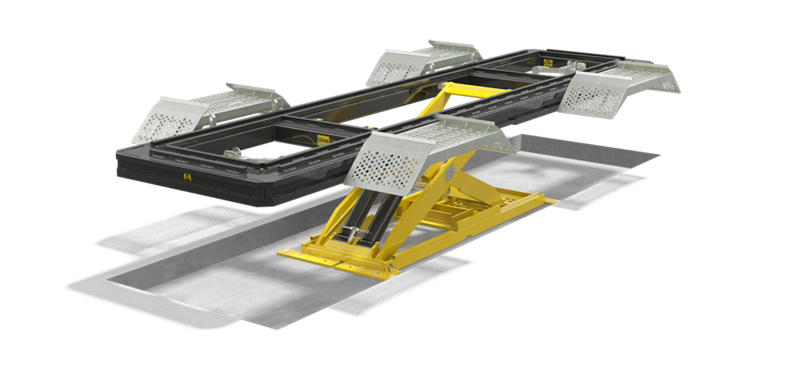

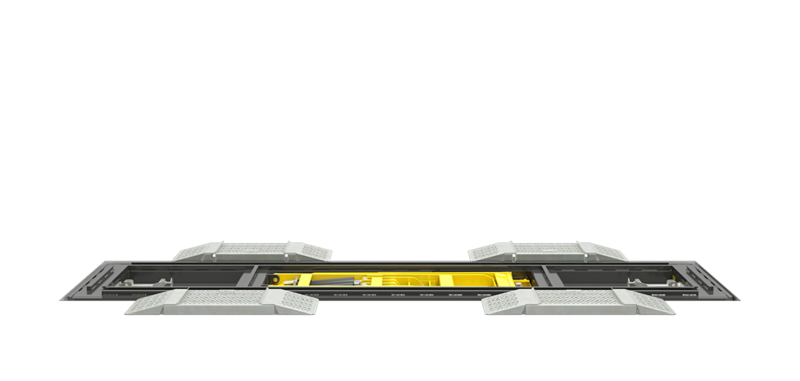

The UNOLINER CRS4600 In-Ground is a perfect blend between the 4 and the 5.5 meter chassis straightening bench, mounted level with the workshop floor.

This in-ground straightening bench boasts a bench frame length of 4.6 meters and is suitable for the L30 and L36 lift, offering its user a choice between a lifting capacity of 3000 kg and 4600 kg. The two-way locking variant, the CRS4600T, allows for more versatile accessory placement.

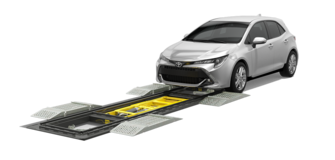

CRS4600 benches are suitable for cars of all sizes, MPVs, SUVs, crossovers, pickup trucks, all-terrain vehicles, and light commercial vehicles. It is an ideal straightening, alignment, and collision repair bench, which can also be used as a multifunctional vehicle maintenance and general repair worksite.

Features

  • 3 or 4.6 ton lifting capacity
  • Level with the ground in its lowest position
  • Multiple-angle 10-ton pulling ability
  • Interchangeable UnoLiner accessories
  • Mechanical and hydraulic safety systems
  • Two-way locking variant

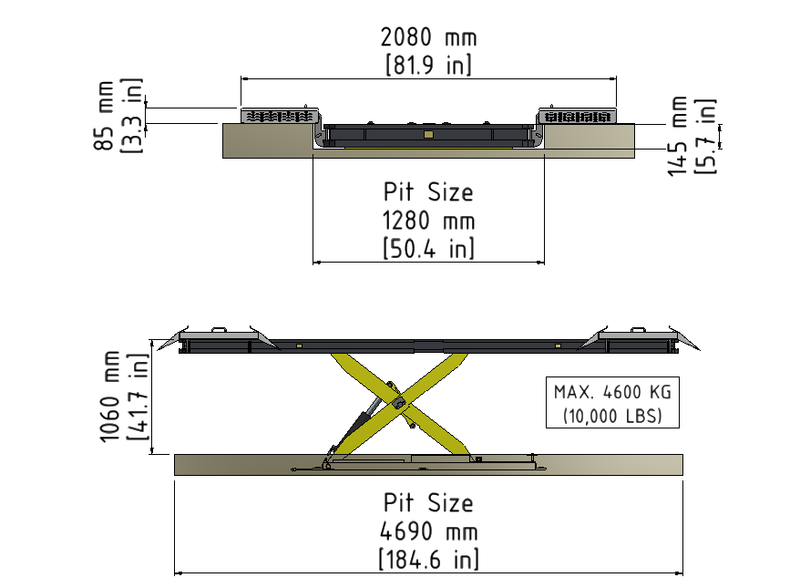

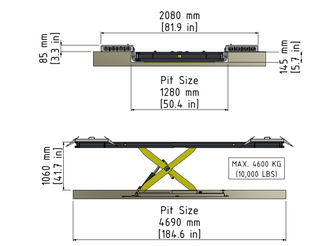

Technical data

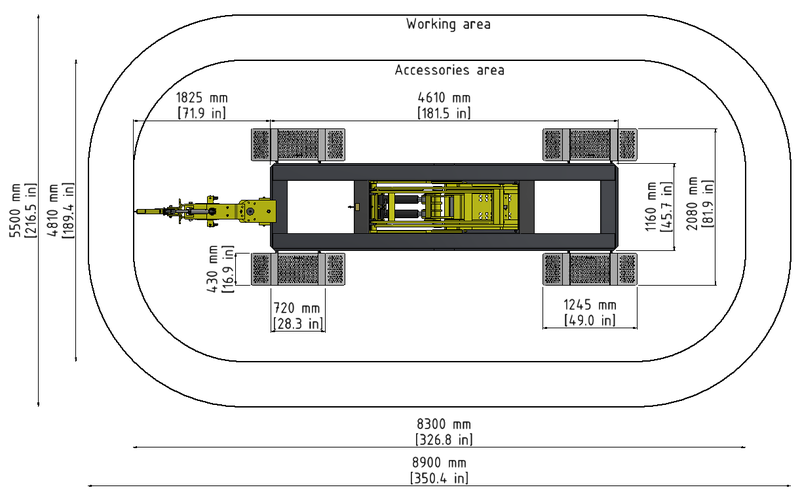

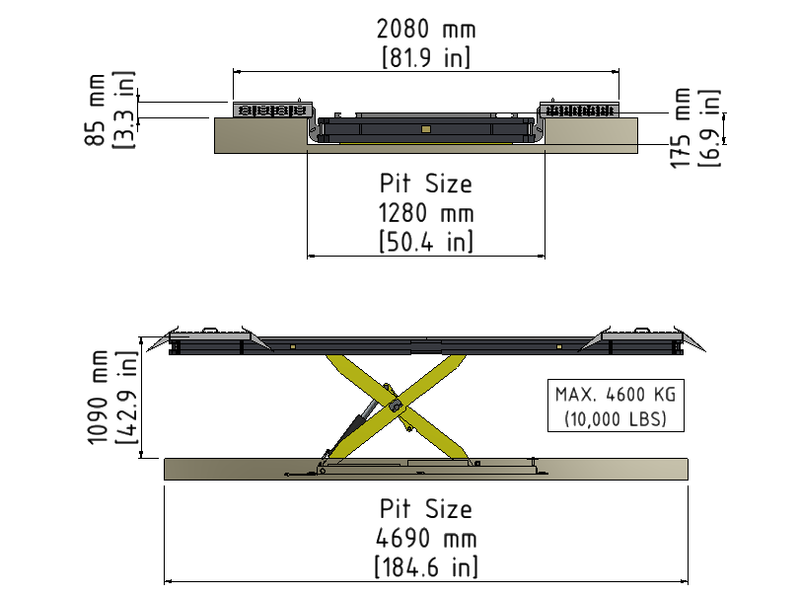

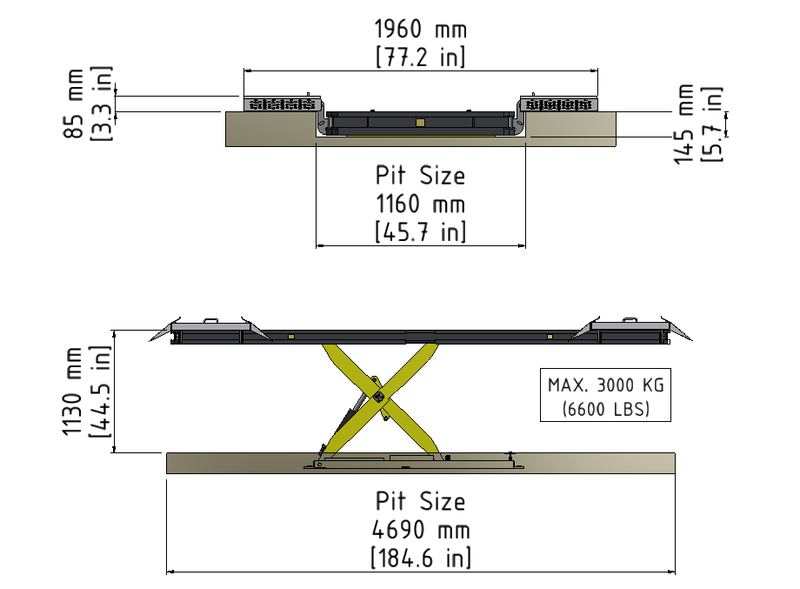

  • Bench frame length : 4610 mm
  • Bench frame width : 1040-1160 mm
  • Min. bench height : 0-30 mm
  • Max. bench height : 1060-1130 mm
  • Max. load weight : 3000-4600 kg
  • Width incl. ramps : 1960-2080 mm
