TELWIN TECHNOLOGY TIG 222 AC/DC

TELWIN TECHNOLOGY TIG 222 AC/DC

  • Code: TELWIN TECHNOLOGY TIG 222 AC/DC

CODE - 852054

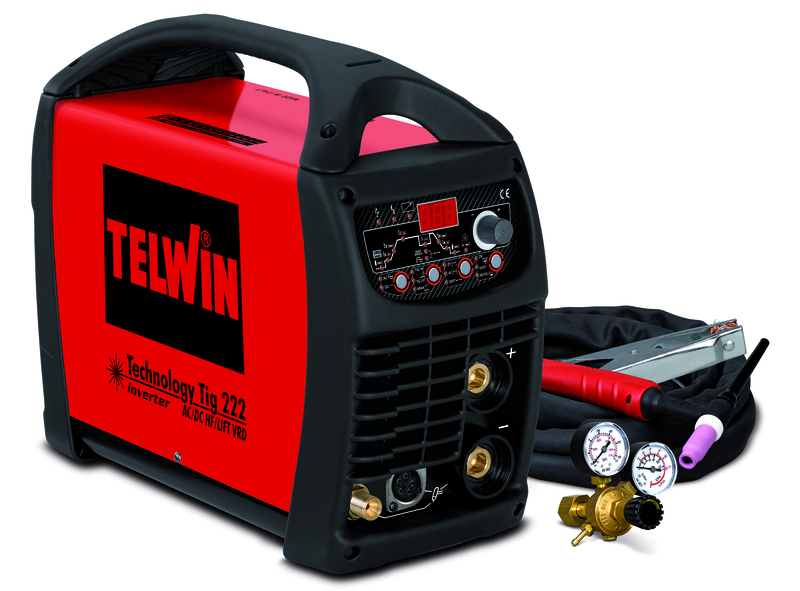

TECHNOLOGY TIG 222 AC/DC-HF/LIFT

Microprocessor controlled, TIG (high frequency HF or LIFT striking), PULSE TIG and MMA inverter welding machine in direct and alternating current (AC/DC).
Use with a wide range of materials such as steel, stainless steel, titanium, copper, nickel and their alloys, aluminium, magnesium and their alloys.
Features:
- pulse and EASY pulse operation
- adjustable pre-heating for simpler striking in AC
- TIG regulations: bi-level, start up/end current, spot welding time, pre/post gas, current up/down slope, balance DC AC, square wave frequency
- THINSPOT function for quick and precise tack welding
- MMA regulations: arc force and hot start
- anti-stick device
- VRD device
- remote control connector
- thermostatic, overvoltage, undervoltage, overcurrent protections.
Complete with TIG welding accessories.

CODE852054
ABSORBED POWER AT 60%3,3 kW
SINGLE PHASE MAINS VOLTAGE230 V
MAINS FUSE20 A
MAINS FREQUENCY50 / 60 Hz
EFFICIENCY81 %
CURRENT RANGE5 - 200 A
POWER FACTOR0,7
MAX CURRENT200 @ 24 % A
D. USABLE ELECTRODES IN DC1,6 - 4 mm
DC CURRENT115 A
PROTECTION DEGREEIP23
MAX NO LOAD VOLTAGE95 V
DIMENSIONS43 x 17 x 34 cm
MAX ABSORBED CURRENT33 A
WEIGHT16,35
ABSORBED CURRENT AT 60%21 A
EAN CODE800489794393 0
MAX ABSORBED POWER5,5 kW
