B1055 BENCH ADAPTOR

• Code: B1055 BENCH ADAPTOR

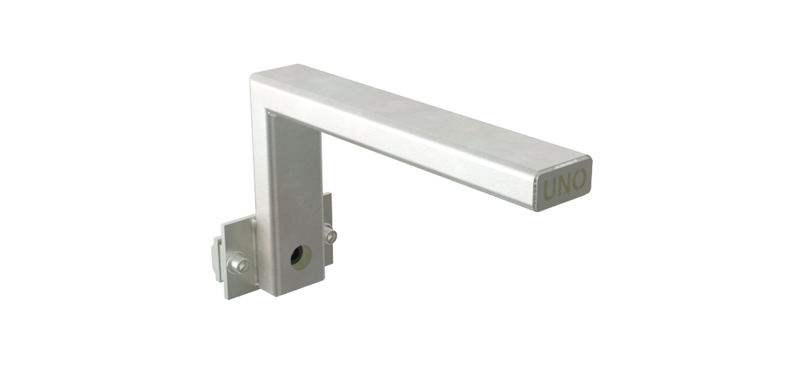

The UnoLiner B1055 Bench Adapter has been specifically developed for vehicles with larger track and chassis widths. The B1055 has the same height as the standard B10 Bench Adapter and its chassis clamp arms have been elongated without sacrificing strength. The B1055 is suitable for all UnoLiner chassis clamps and straightening benches. Its patented Quick Lock one-bolt locking system makes attaching the B1055 easy and safe.

Information

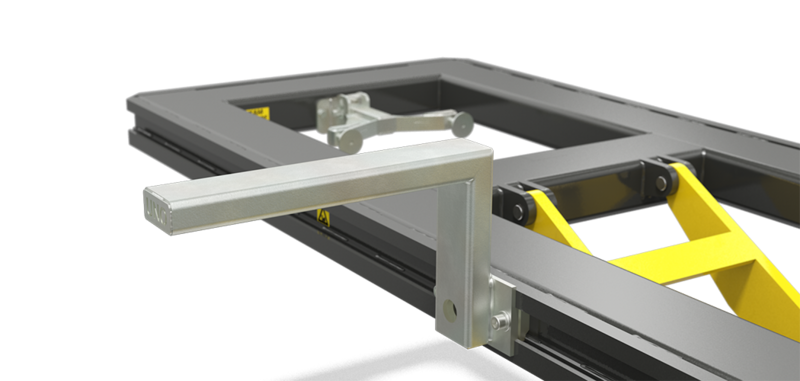

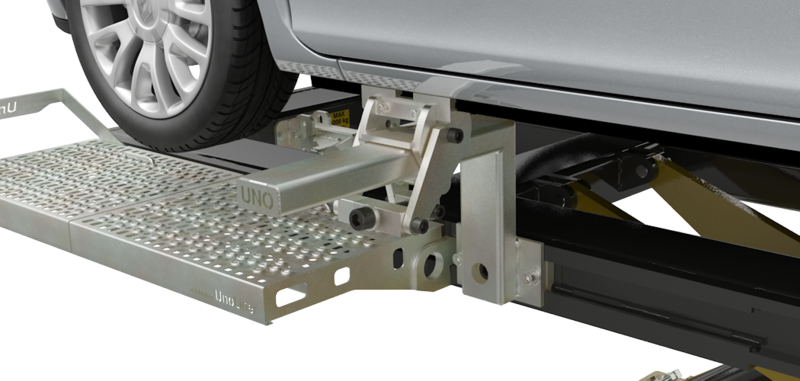

The B1055 ensures fast and secure mounting and anchoring of UnoLiner chassis clamps on all UnoLiner straightening benches. Because of its special design, it is perfectly suited for both normal and wider vehicles.

Features

• For larger track widths
• Compatible with all UnoLiner chassis clamps
• Compatible with all UnoLiner benches
• Fast and easy to install
• Quick Lock one-bolt locking system

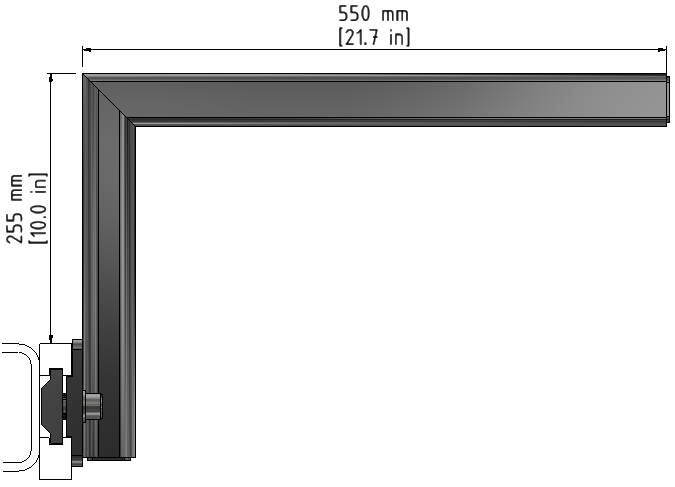

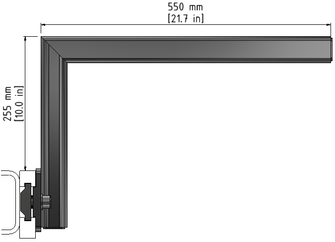

Technical data

• Height above bench : 255 mm
• Length : 550 mm

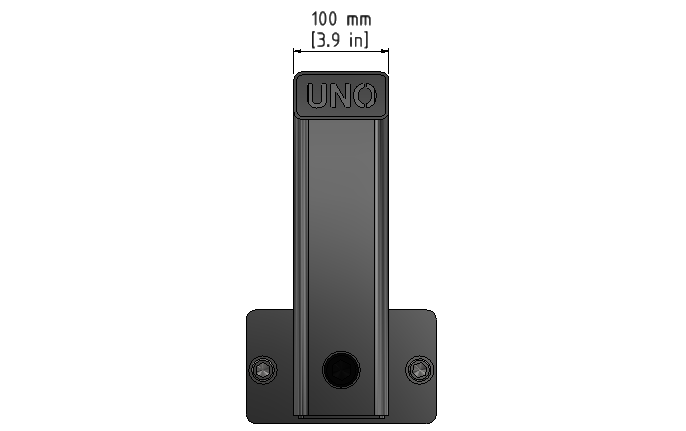

• Width : 100 mm
• Max. load weight : 1250 kg
