UNOLINER RV8E 8 TON 18V HANDHELD

• Code: UNOLINER RV8E 8 TON 18V HANDHELD

RV8E 8 Ton 18V Handheld

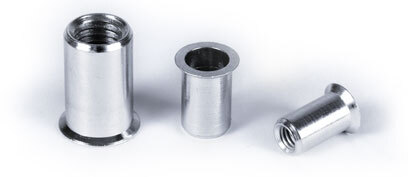

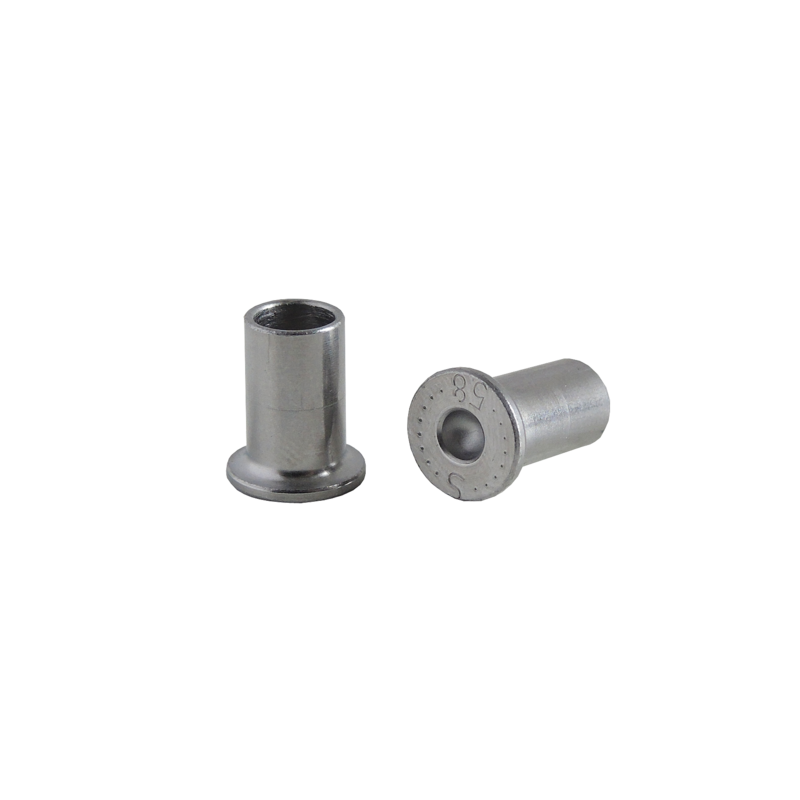

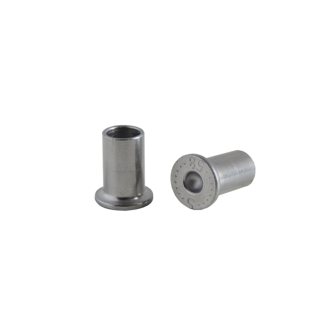

Self-Pierce Riveting (SPR) is a quick and efficient way of joining sheets of material together that is commonly used by the biggest car manufacturers. It is a cold joining process in which a rivet is driven through the top sheet(s) to connect it to the lower sheet without piercing it. To make these types of repair possible for our clients, we offer riveting equipment that is used mostly for this purpose but can also be used as universal riveting guns.

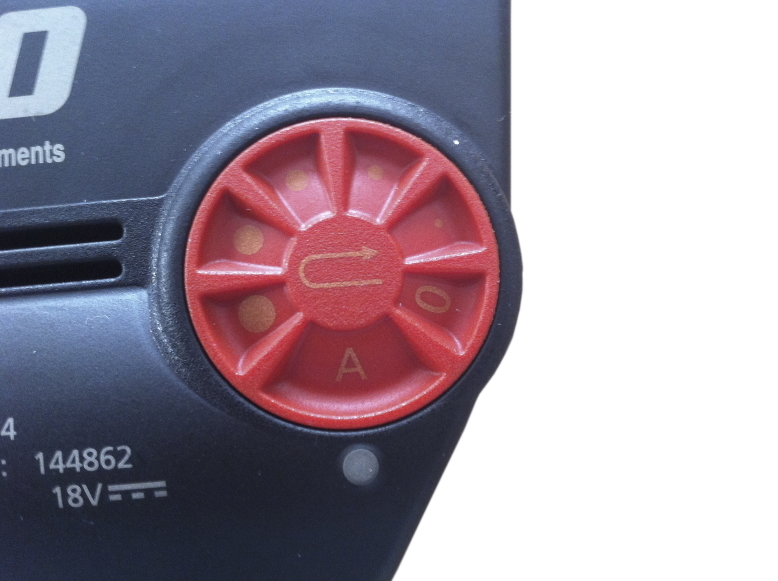

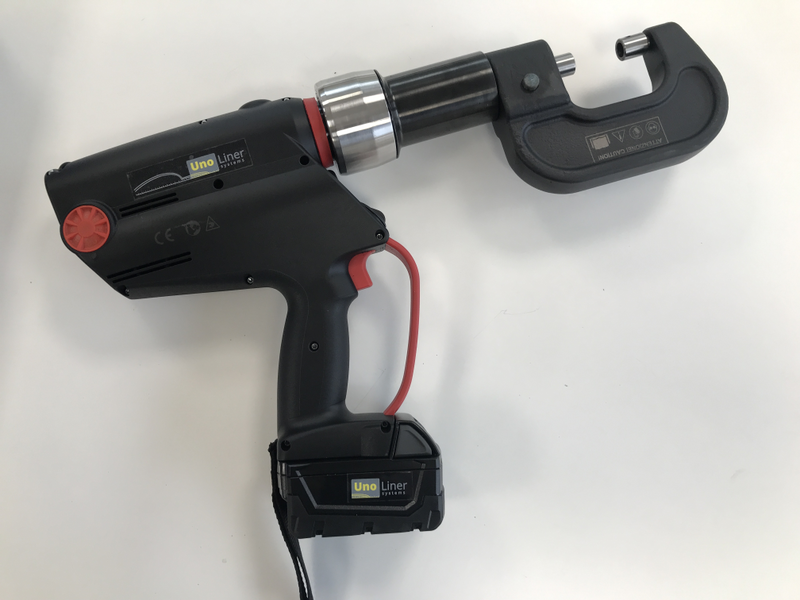

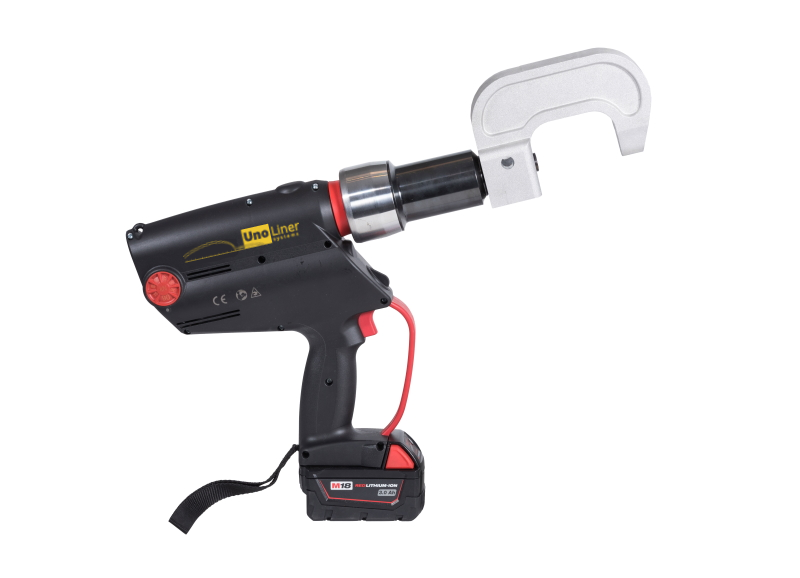

This handheld UnoLiner RV8E packs quite a punch with its 8-ton pushing and pulling capacity. Despite its compact size, the RV8E is a durable and powerful riveting device, approved by Ford and also suited for specific rivet mandrils of many other car brands, such as Audi, Mercedes, BMW, Ferrari, and Porsche. Its pulling and pushing actuator controls a powerful electrohydraulic pump, which guarantees strong and silent operation. The RV8E is also capable of removing rivets with standard dies. Pressing time can be regulated, and when a set force is obtained, the device can retract automatically.

Information

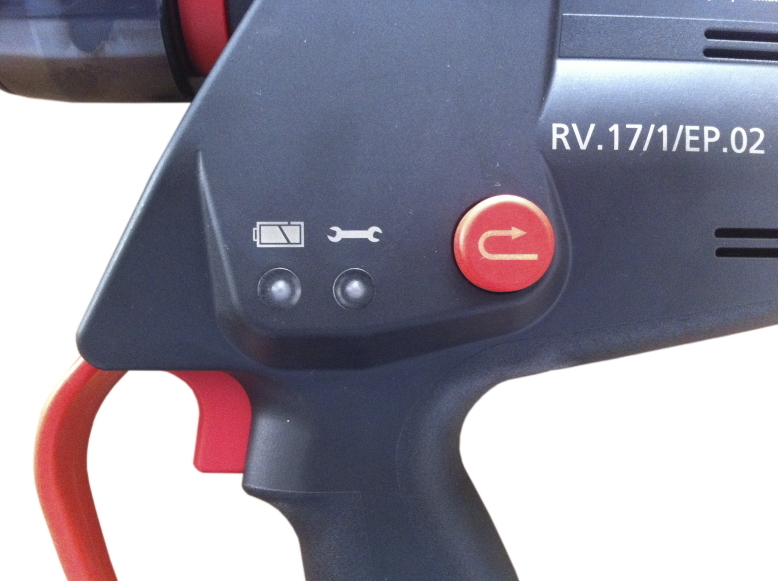

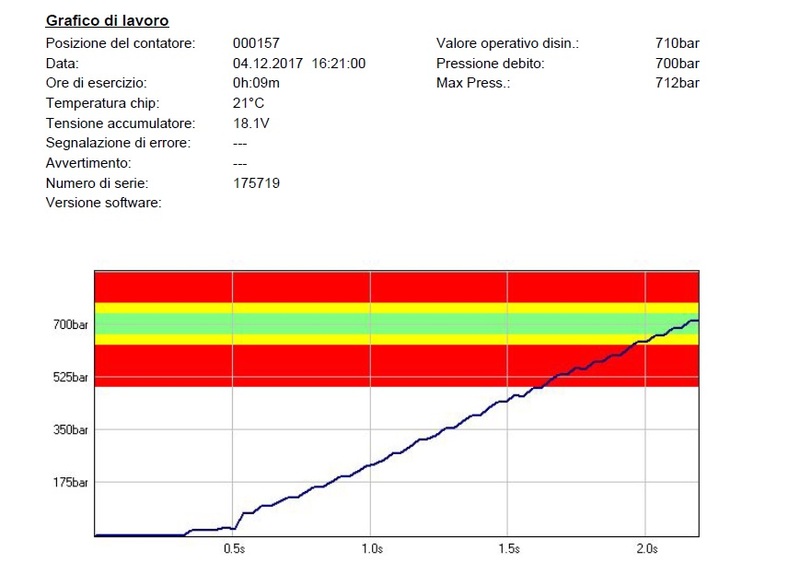

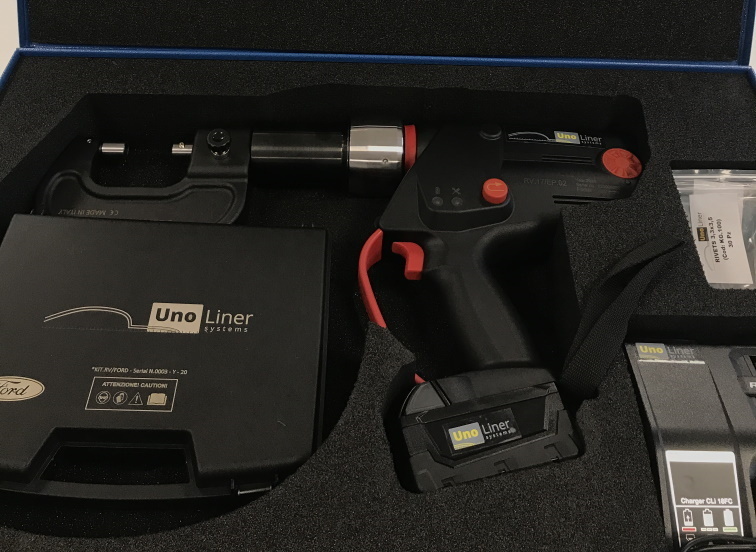

The RV8E comes equipped with an 18V Li-ion battery and has a power cord and a USB port. Built-in software provides analyses and printing reports for each rivet insertion. A grip handle on the compression arm improves its user’s precision. Accessories include C-Arms of different sizes, riveting adapters, and more.

Features

• Strong, lightweight construction
• Approved by Ford
• Suitable for many different car brands and types

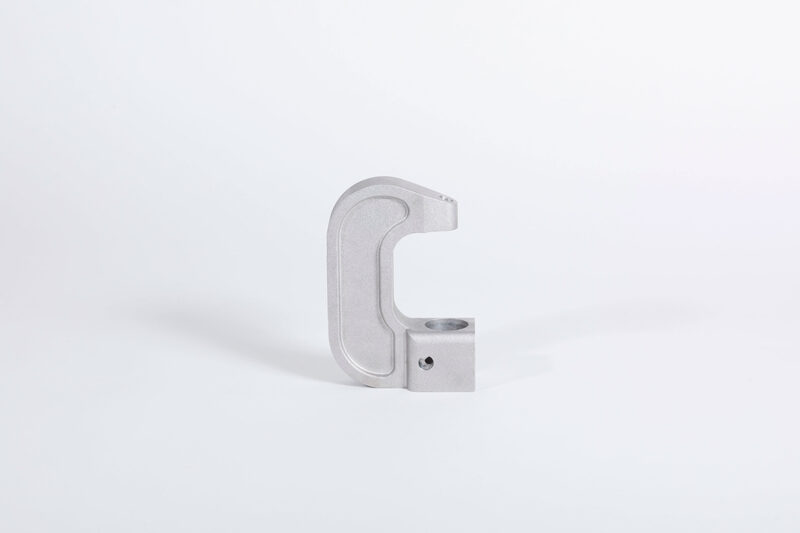

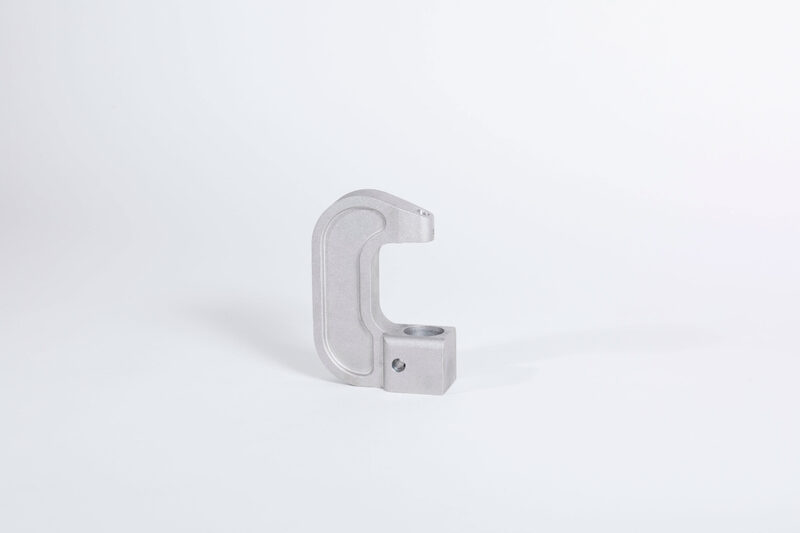

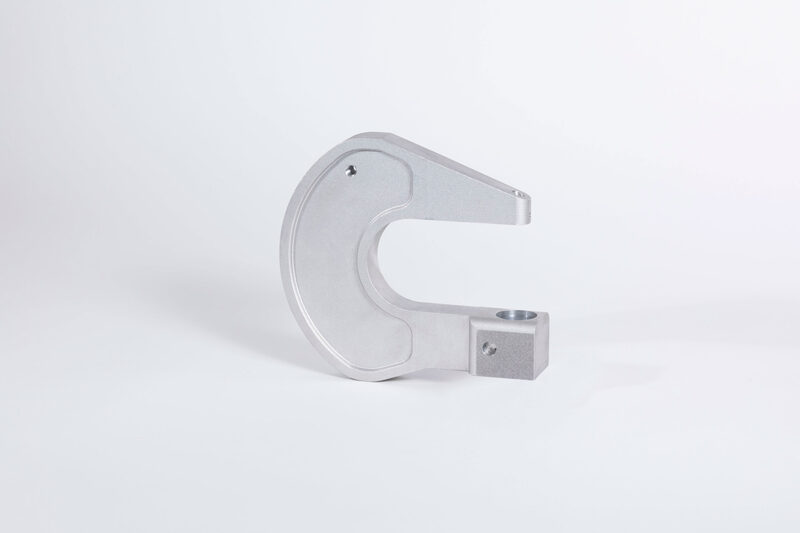

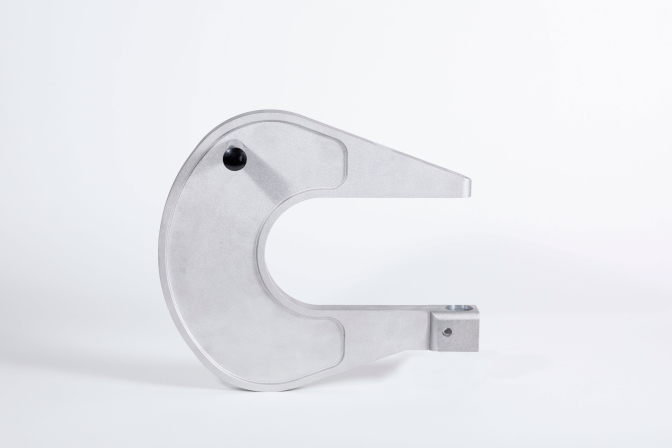

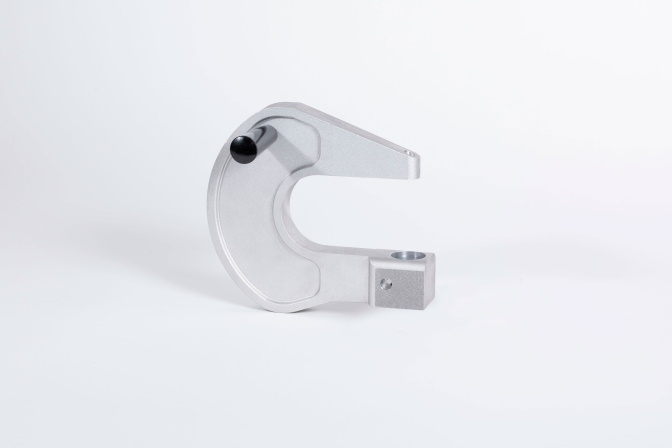

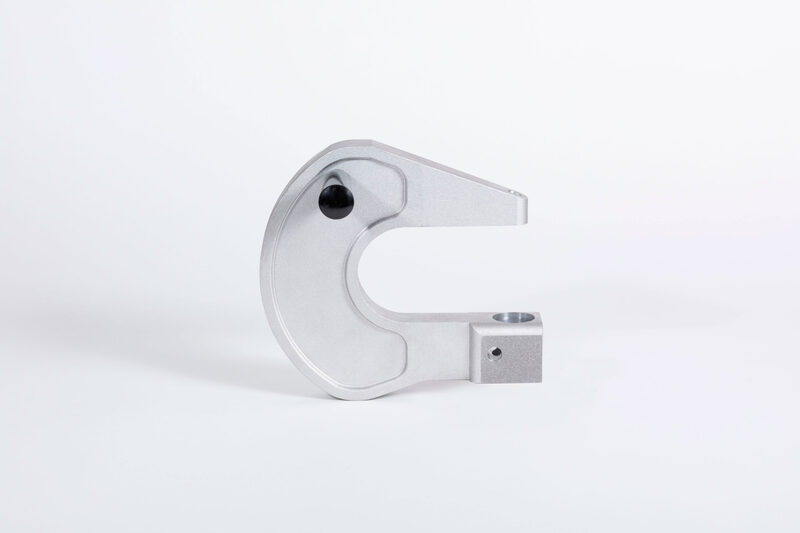

• Compression arms sizes: 40, 120, or 240 mm
• Built-in software to track riveting

Technical data

• Pushing and pulling capacity : 8000 kg
• Weight : 5 kg
• Compression head rotation : 360 degrees
• Adjustable compression force : 20-90 kN
